L800

OVERVIEW

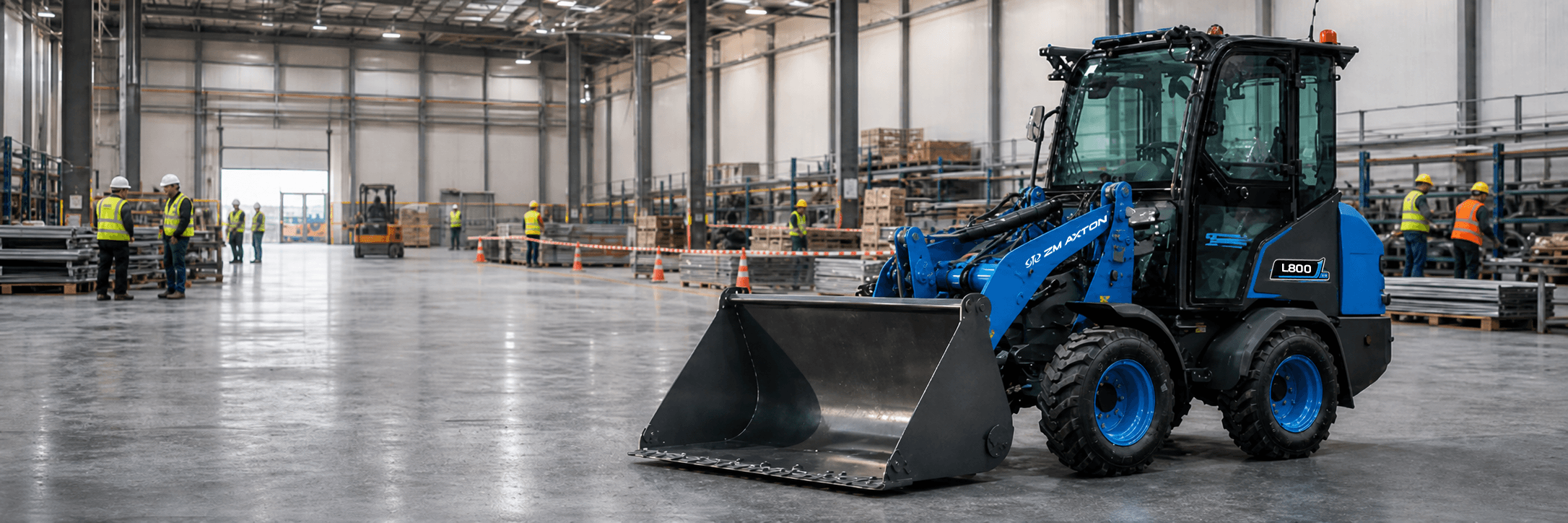

The L800 is an electric compact wheel loader engineered for municipal teams, landscapers, farms, and industrial operators that need a versatile loading machine without the cost and emissions of diesel power. With a 6,250 lb operating weight, 14.1 ft³ standard bucket, 1,765 lb rated load, and 5,395 lbf maximum breakout force, the L800 handles loading, stockpile work, material handling, and general site duties with confidence in tight or sensitive work areas.

At the heart of the L800 is an LFP battery available in two capacities — 20.5 kWh and 26.5 kWh — running on a 76.8 V architecture. Lithium iron phosphate chemistry is known for its stable performance, long service life, and dependable operation in demanding environments. Charging is flexible: 12 kW DC fast charging, 6 kW AC charging, and a charging-pile system that supports 12 / 6 / 3.2 kW. The 20.5 kWh pack reaches a full charge in roughly 1.2 to 5.8 hours depending on charger; the 26.5 kWh pack in 1.5 to 7.5 hours.

The L800 is built around an articulated-steering geometry tuned for tight turning radii in urban jobsites, indoor facilities, and crowded yards. A constant-pressure hydraulic system runs at 2,685 psi with a 12 gpm gear pump and a third-function multiway valve, supporting a wide range of attachments through a single dedicated lifting circuit and tipping circuit. Maximum rated output power is 25 hp with up to 38 lb·ft of travel torque, and the working cycle completes in 9 ± 1 seconds.

Operator safety and serviceability are built in. A hydraulic power service brake, mechanical parking brake, and emergency stop button inside the cab provide multiple layers of protection. With far fewer moving parts than a diesel machine — no engine oil, no fuel system, no exhaust aftertreatment — routine maintenance is reduced and uptime improves over the life of the loader.

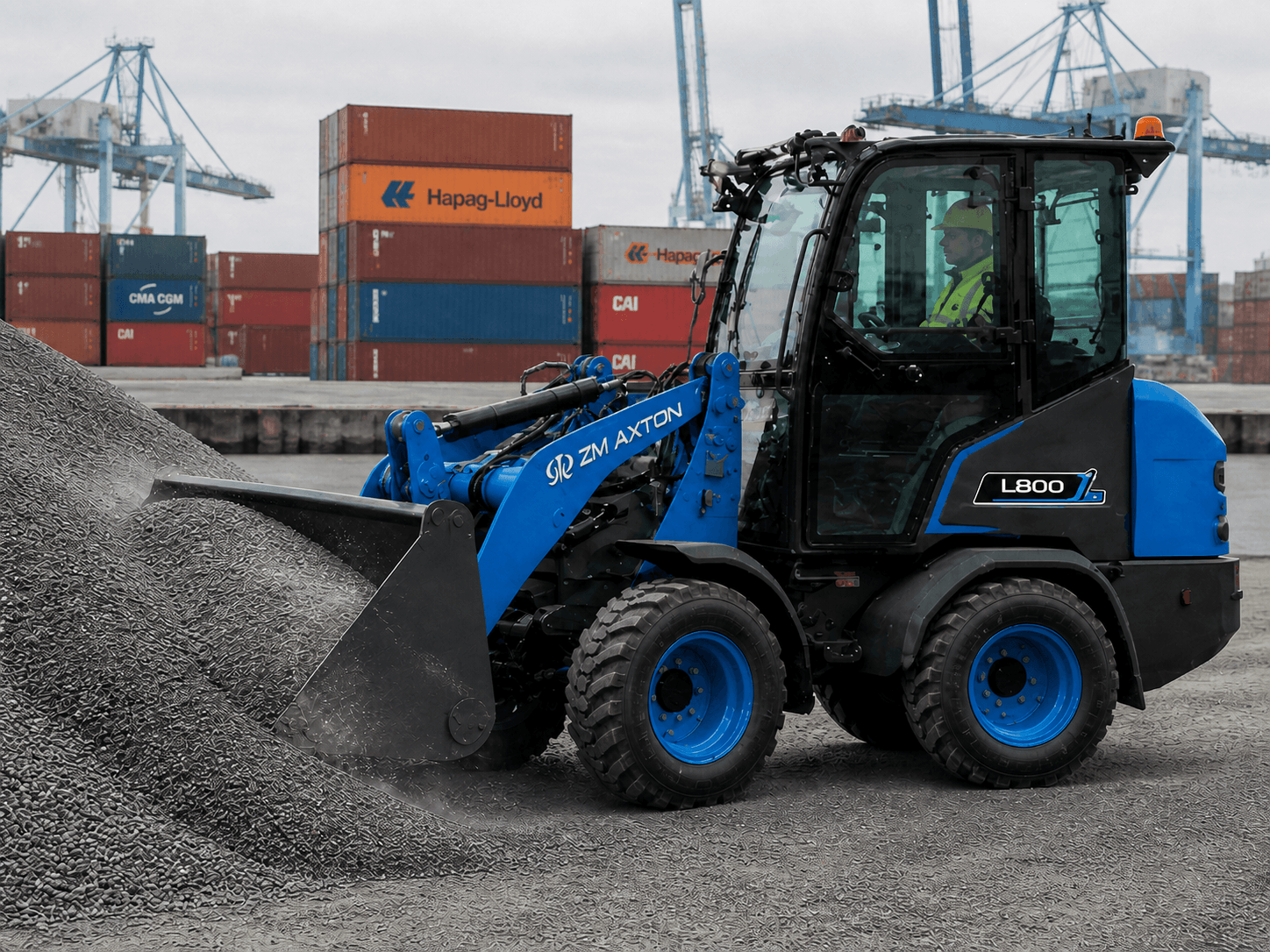

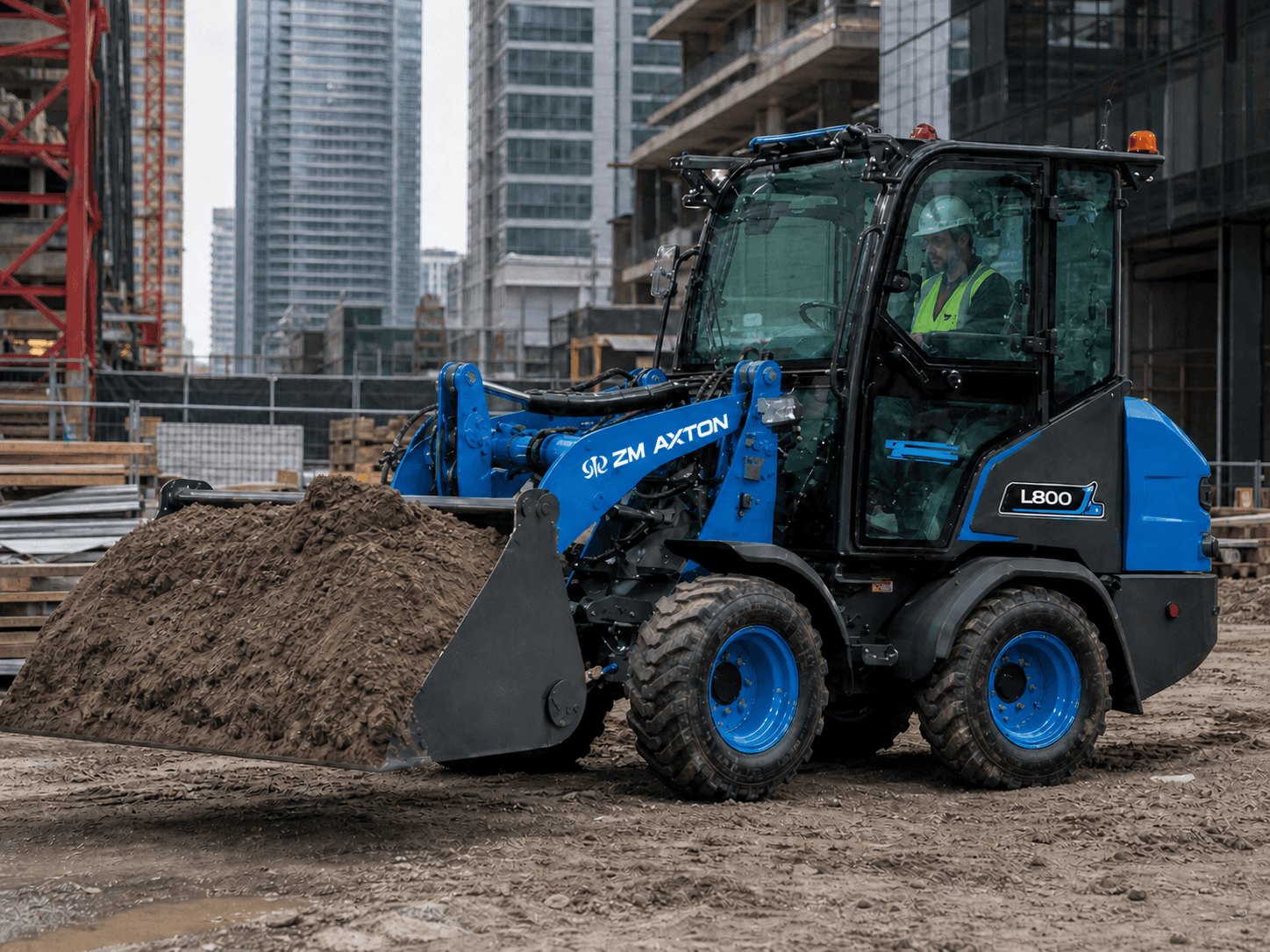

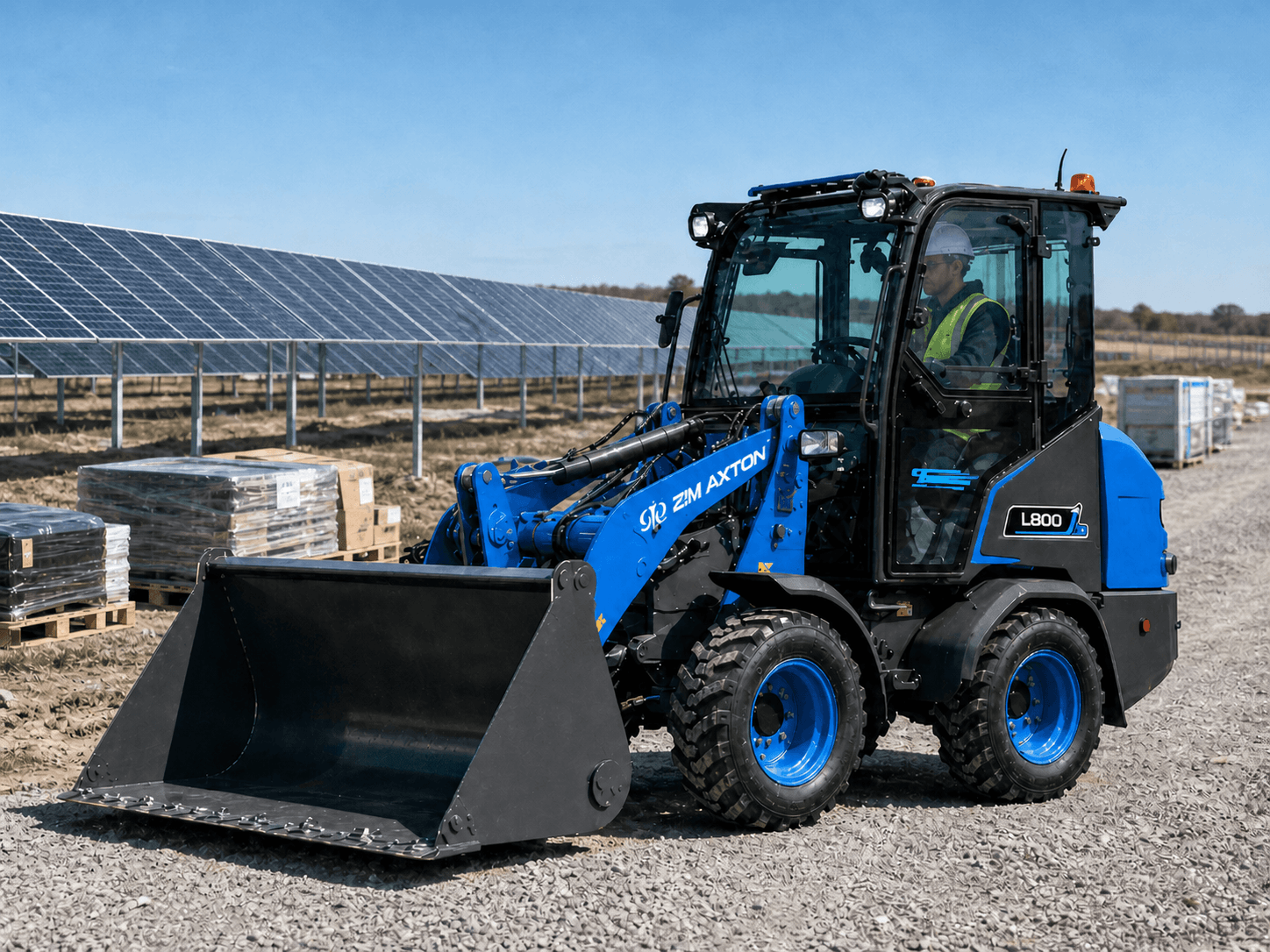

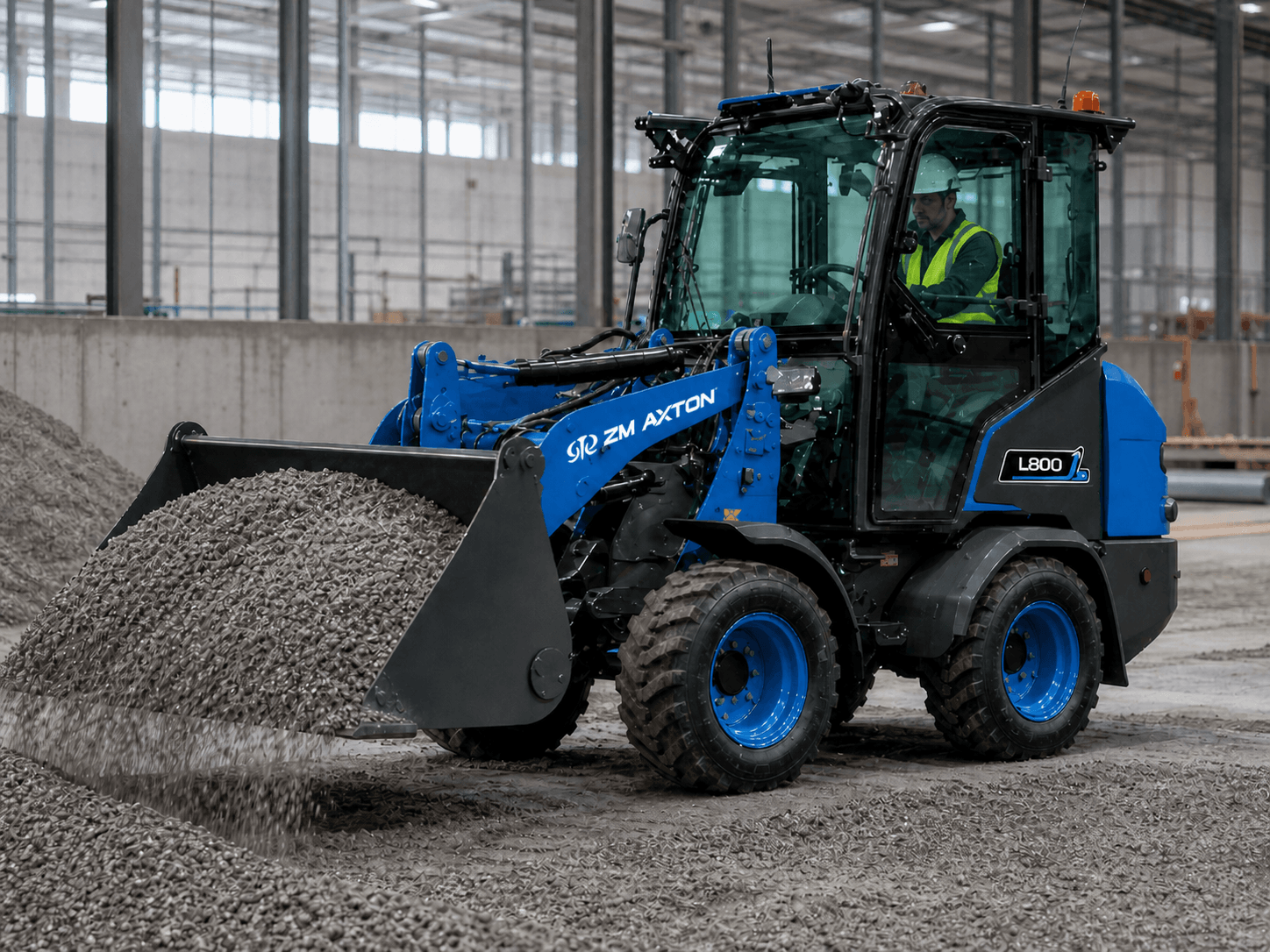

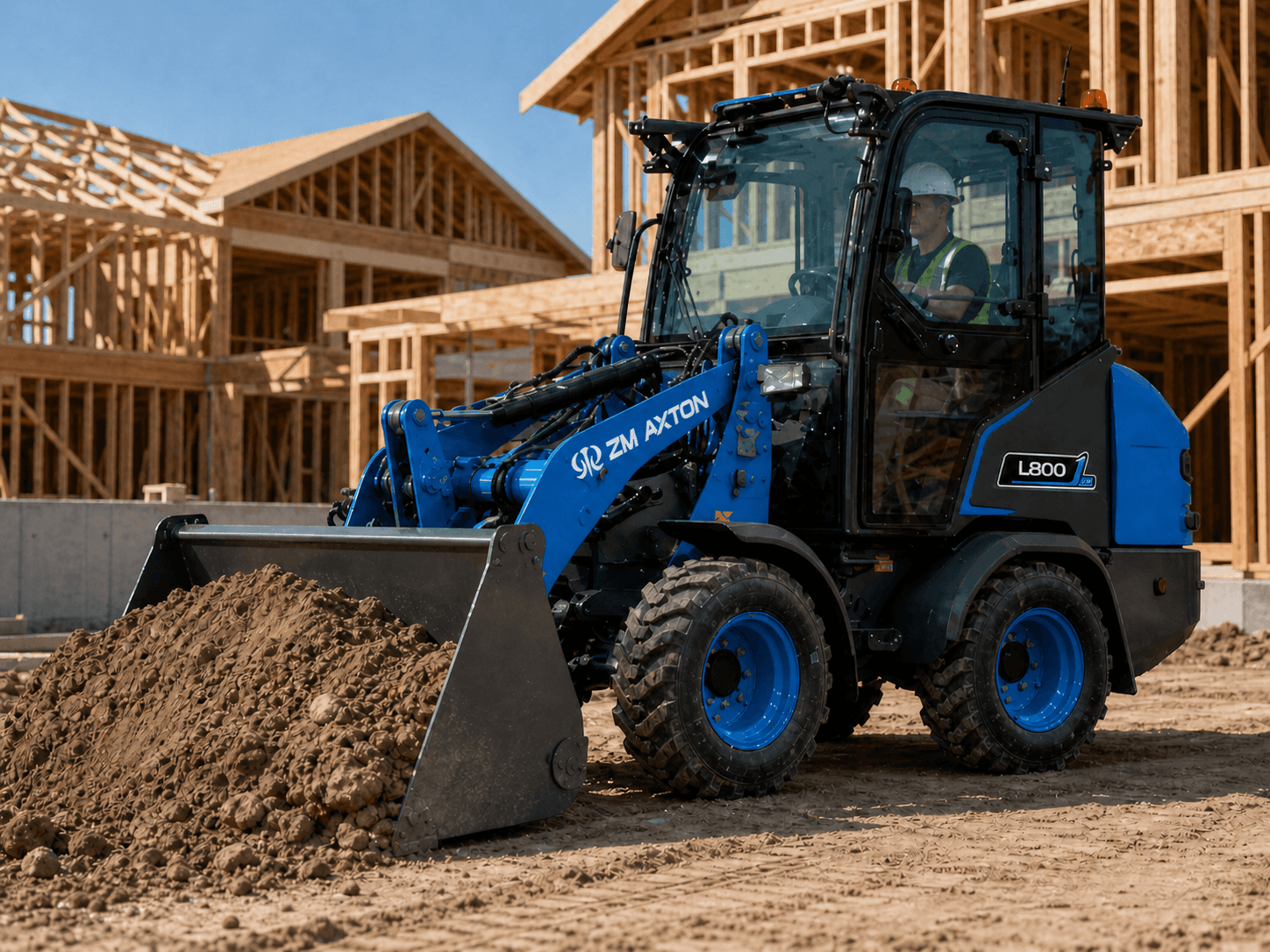

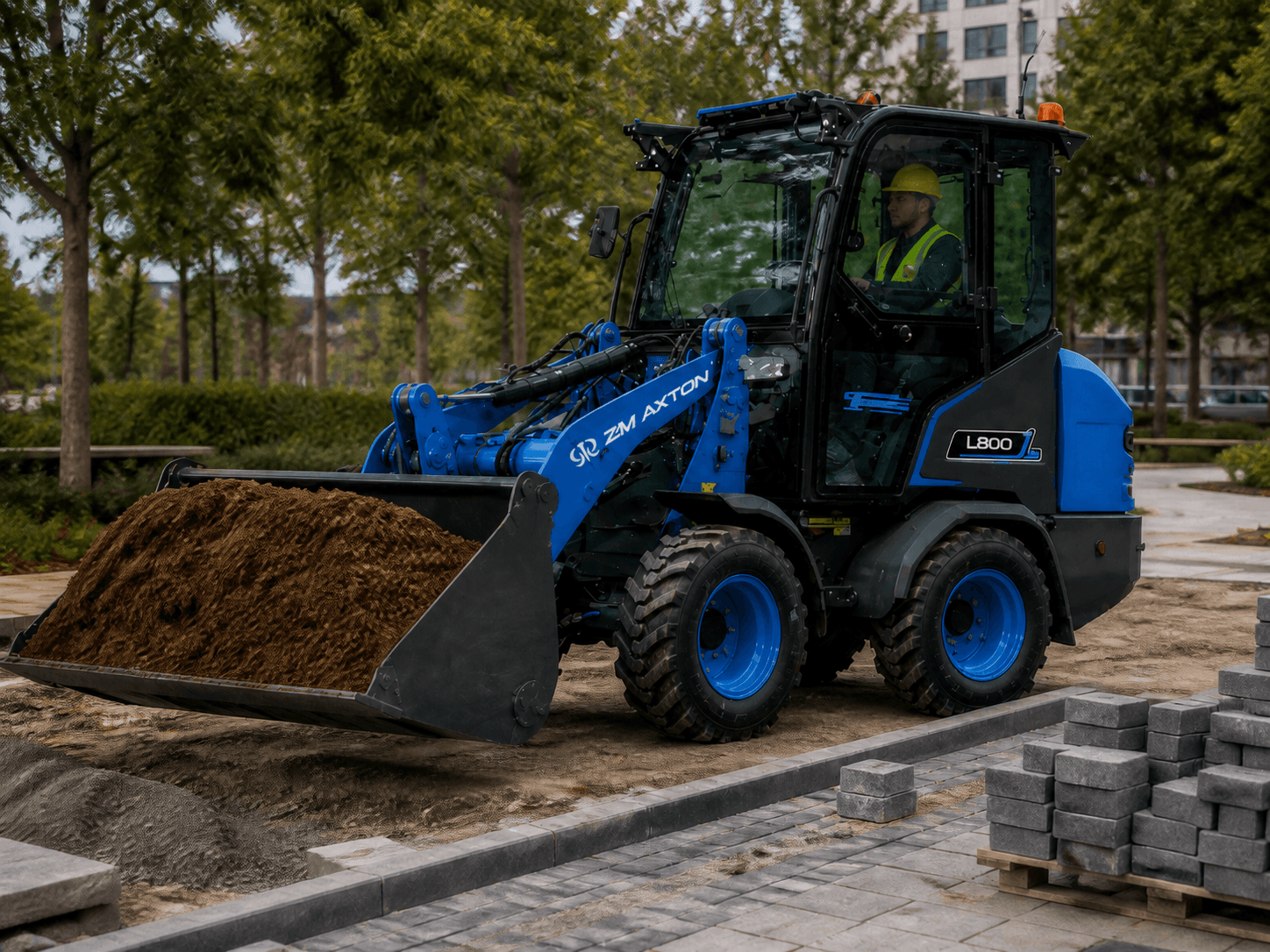

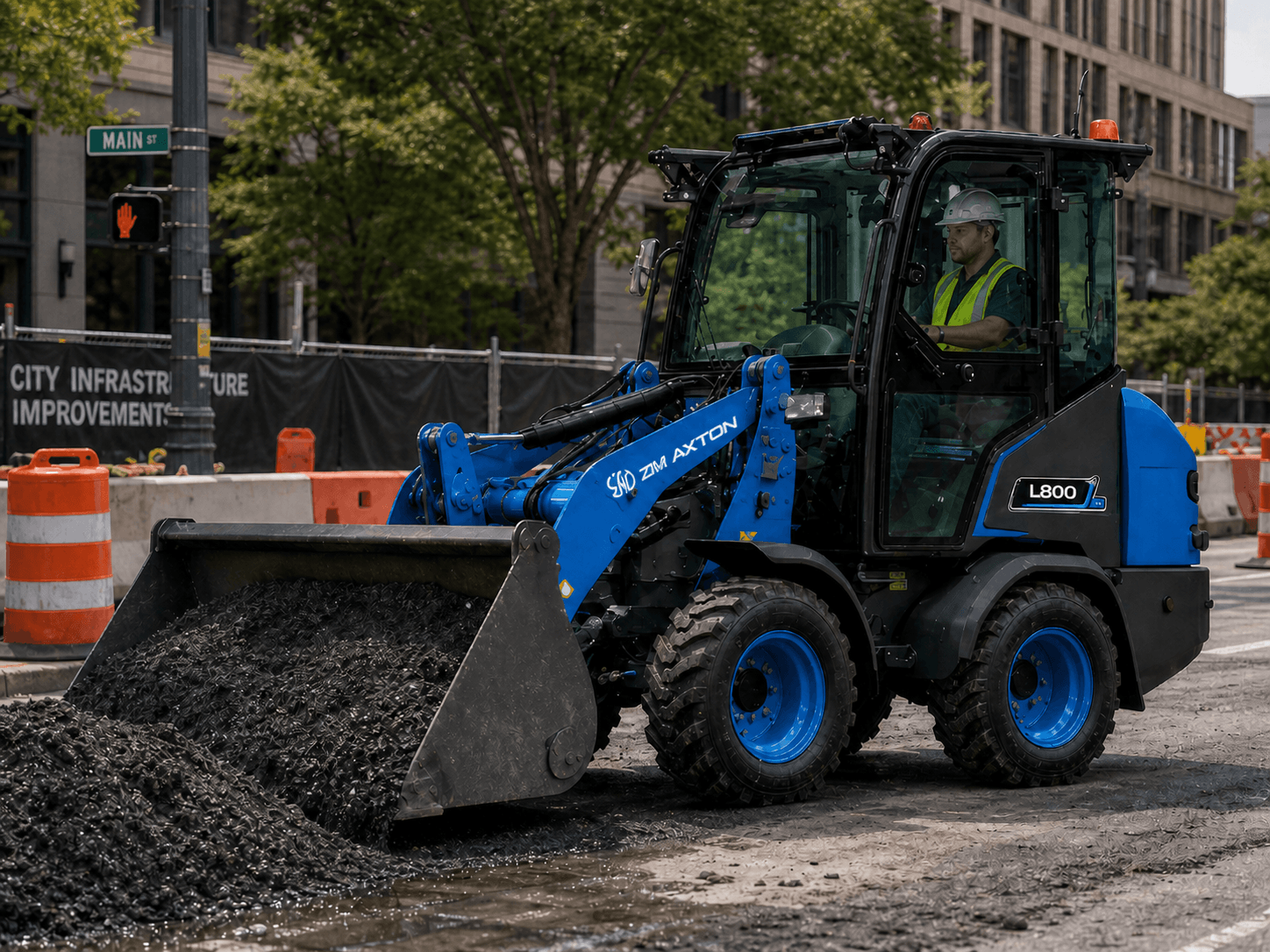

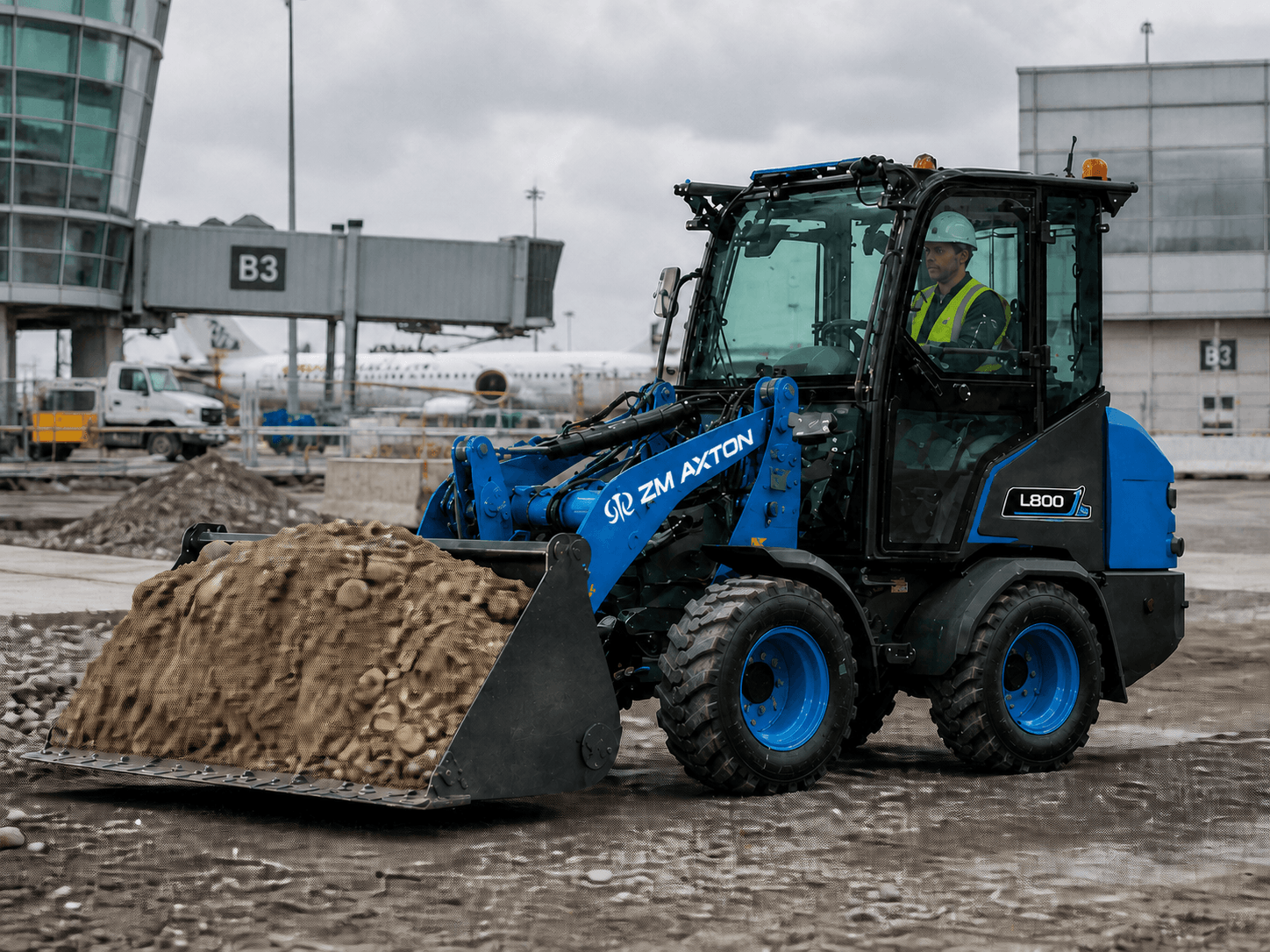

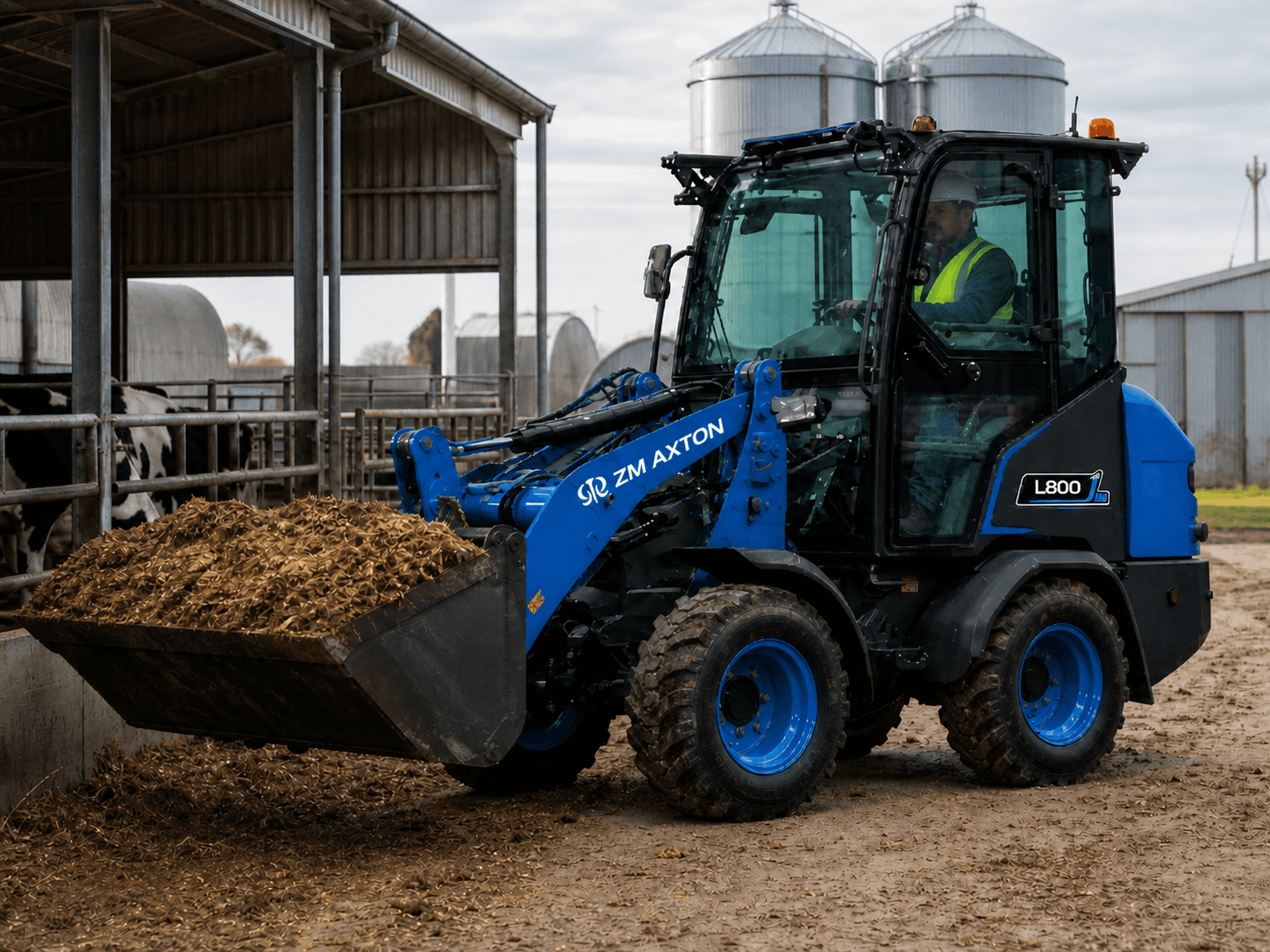

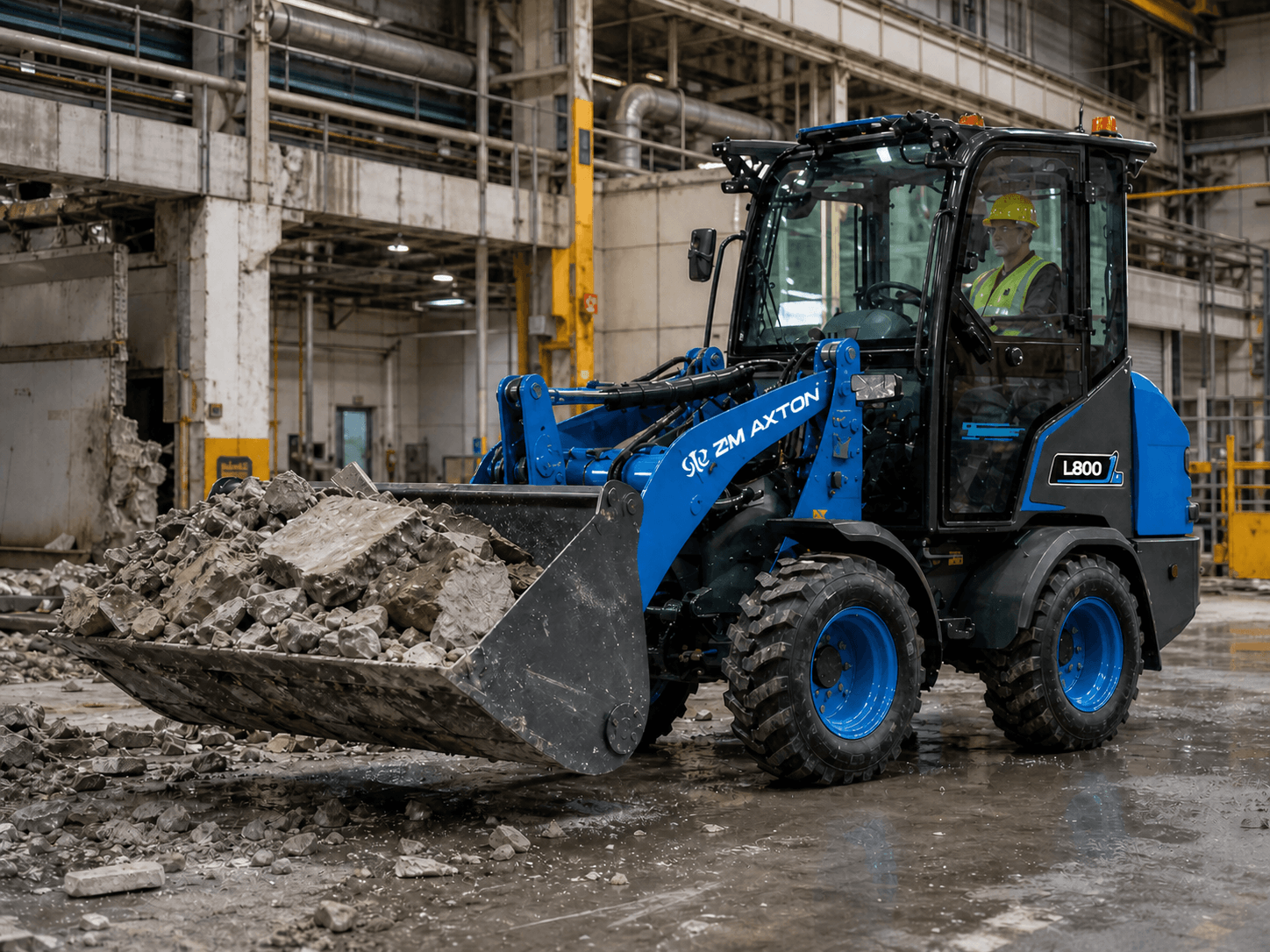

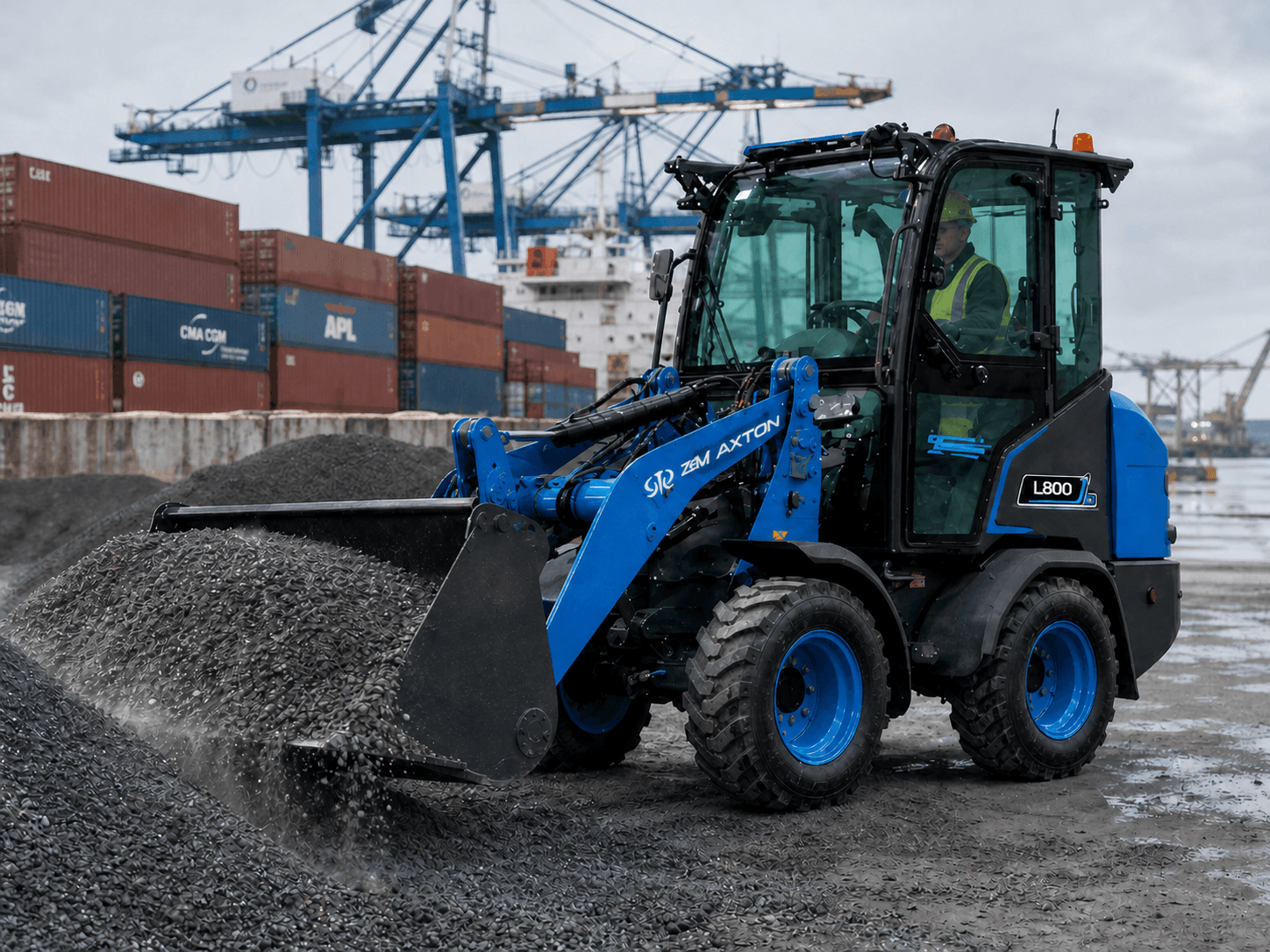

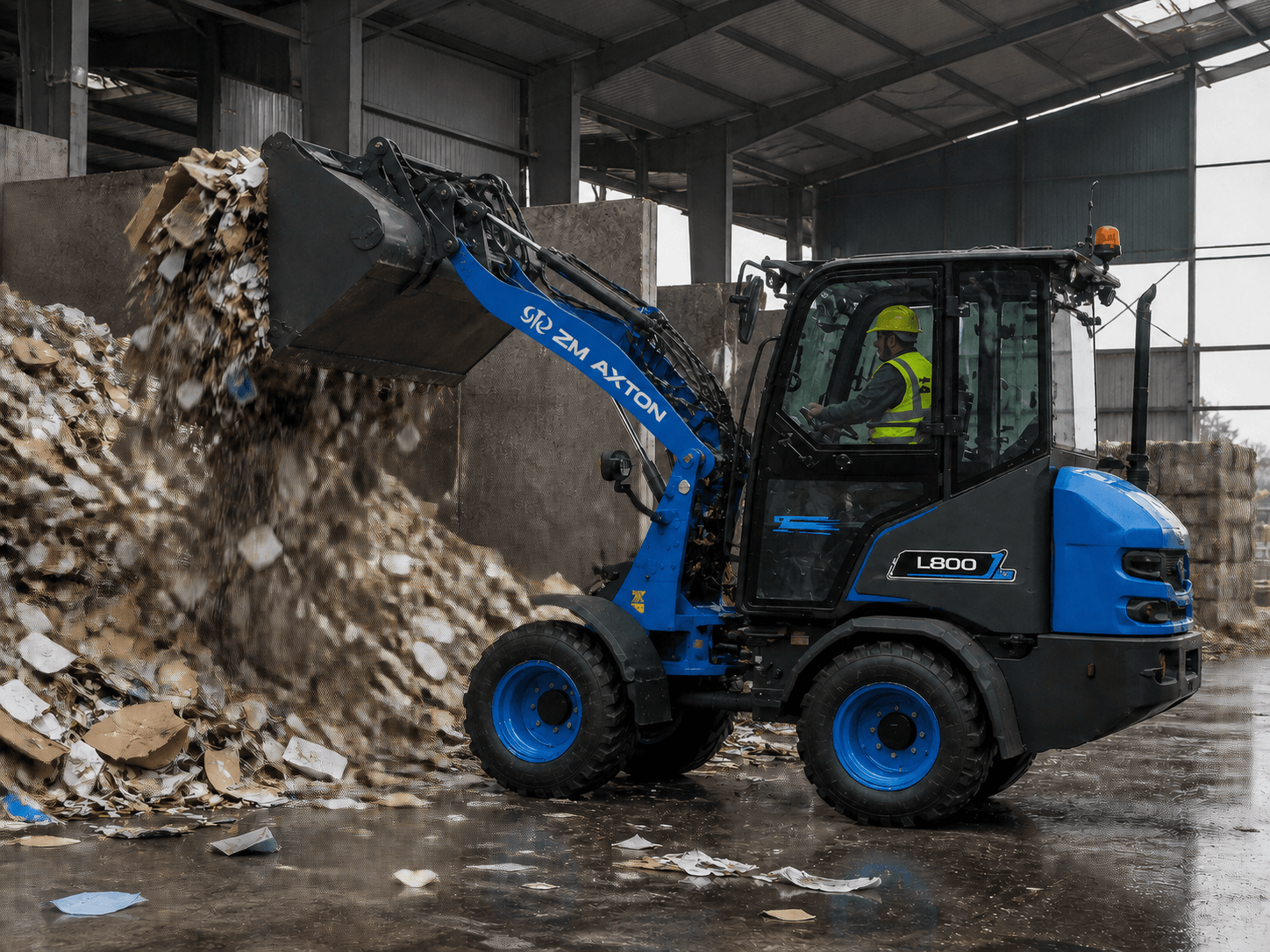

Zero tailpipe emissions and lower operating noise make the L800 a practical fit for municipal projects, indoor warehouses, agricultural buildings, residential developments, and other settings where diesel equipment is impractical or restricted. From construction support and landscaping to farm work, snow handling, and urban material moves, the L800 brings clean, dependable loading power to a broad range of applications.
